Do you know several commonly used PVC plastic hoses?

PVC hoses are widely used in industrial life. PVC hoses are various plastic hoses made of environmentally friendly transparent PVC soft rubber materials. There are many types of PVC hoses, such as PVC square bone hoses, PVC round ribs Hose, PVC transparent steel wire hose, PVC plastic tube, etc. Today, I would like to introduce some types of PVC hoses that are widely used in the market and the characteristics and uses of various PVC hoses.

1. PVC reinforced hose

This is an all-plastic plastic-reinforced spiral-reinforced hose, reinforced with a hard PVC spiral skeleton on the surface. It is divided into two types: round bone hose and square bone hose. There is no difference between these two types of tubes. The materials used are the same. There are only some differences in the process. The round bone reinforcement is that the tube wall is covered on the skeleton, while the square bone reinforcement is that the skeleton is glued to the tube wall. But whether it is a square bone or a round bone, the application range is the same. The inner walls of the two tubes are smooth, and they can be used for water passing, vacuuming, etc.

Introduction to the characteristics of PVC plastic reinforced hose:

1. Good performance. Corrosion resistance, high impact strength, small fluid resistance, aging resistance, long service life, it is an ideal material for building drainage and chemical sewage.

2. Easy to install. The weight is only 1/7 of the cast iron pipe with the same diameter, which can greatly speed up the project progress and reduce the construction cost.

3. The inner wall is smooth and not easy to block. Suction and conveying of industrial vacuum materials, drainage, not easy to block.

4. Economical and affordable. Compared with the cast iron pipe with the same specifications, the comprehensive cost is lower, and the maintenance cost is lower.

2. PVC transparent steel wire telescopic hose

The PVC transparent steel wire hose is made of high-quality PVC synthetic material embedded with a hard plastic rib spiral skeleton, the inner and outer walls are smooth, the bending radius is small, flexible in stretching and bending, and it has good negative pressure resistance. The material is rich in anti-aging and anti-ultraviolet radiation raw materials, and has high anti-aging performance.

  Application: PVC transparent steel wire reinforced hose is light in weight, transparent in body, and has excellent weather resistance and high negative pressure resistance. It is suitable for industrial, agricultural, water conservancy, air-conditioning and ventilation systems. It can transport gas, welding fume, woodworking machinery telescopic vacuuming and ventilation, dust, and vacuum suction powder, particles, transporting water, oil, etc. in civil engineering. It is a high-quality substitute for rubber tubes and metal tubes.

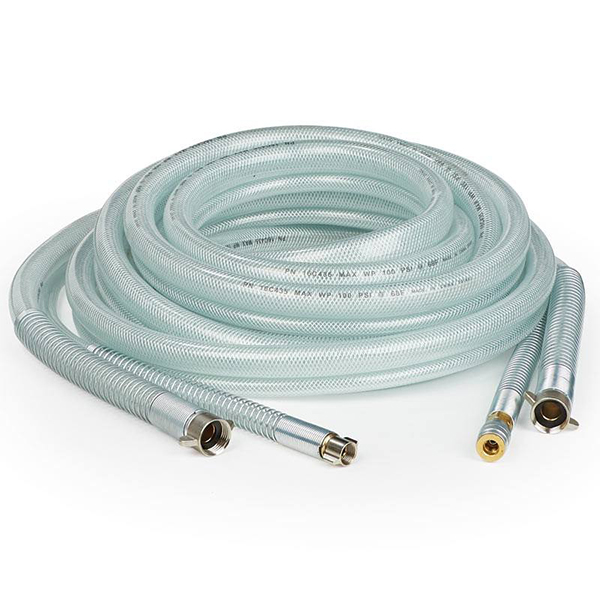

3. PVC fiber reinforced hose

There are many names for this kind of tube. The standard name is PVC fiber reinforced hose, and some like to call it “snake skin tube, reticulated tube, PVC braided hose”, etc. There are many types on the market, with different types. Color, hose reinforced with different fiber threads, this kind of pipe is very resistant to high pressure because it is reinforced with white fiber thread, like the usual garden watering pipes, car washing pipes, etc. In daily life, it is used in industry for drainage and water supply, transporting various types of mechanical oil and water, and pneumatic piping is also widely used.

Fits


Post time: Dec-23-2022
